BAMBOO BRIQUETTE MACHINE
Bamboo briquette machine are used for making bamoo briquettes from bamboo waste, achieving waste utilization with a PLC control system for easy operation.
BAMBOO BRIQUETTE MACHINE FOR SALE
Dual-head design, high output, stable operation, 50% energy saving, fully automatic operation design
- The bamboo briquetting machine is a biomass recycling machine, which is specifically designed to compress bamboo into bamboo briquettes under high pressure and high temperature. Its principle utilizes lignin in bamboo, physically briquetting under high pressure through mechanical punching, without a binder needed.
- This briquette machine features multi-functionality, high automation, stable operation, 24-hour continuous operation, and simple operation and maintenance. It effectively solves the problems of bamboo storage and transportation, realizing the resource utilization of agricultural waste.
BAMBOO BRIQUETTE MAKING MACHINE TYPES
Main motor: 22 kW
Capacity: 0.2-0.4t/h

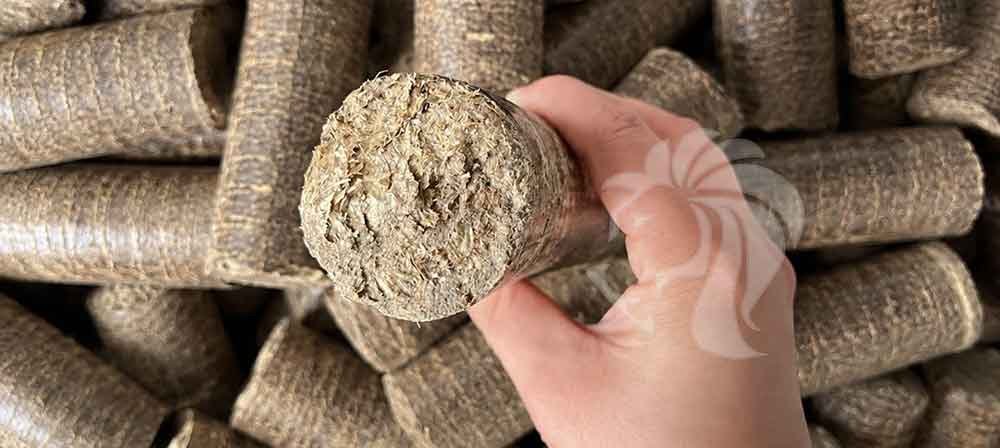

Briquette diameter: 20mm-80mm
Main motor: 45 kW
Capacity: 0.6-1t/h
Briquette diameter: 20mm-80mm
Main motor: 55 kW/75KW
Capacity: 1.2-2t/h
Briquette diameter: 20mm-80mm
Main motor: 160kW
Capacity: 2.5-4t/h
Briquette diameter: 20mm-80mm
TECHNICAL PARAMETERS
| MACHINE MODEL | MAIN MOTOR | CAPACITY | MACHINE WEIGHT | FORMING DIE NUMBERS |
|---|---|---|---|---|
| KXLM-500 | 22KW | 200-400KG/H | 3,000KGS | 1 pieces |
| KXLM-1000 | 45KW | 600-1,000KG/H | 5,500KGS | 1 pieces |
| KXLM-2000 | 55KW/75KW | 1,200-2,000KG/H | 9,800KGS | 2 pieces |
| KXLM-2000B | 160KW | 2,500-4,000KG/H | 16,800KGS | 2 pieces |
WHY MAKE BAMBOO FUEL BRIQUETTES?
1. Resource utilization of bamboo waste
Bamboo processing generates a large amount of bamboo powder, bamboo shavings, bamboo chips, and scraps. These wastes are loose, take up a lot of space, and have low utilization rates when directly processed or burned. Using a bamboo briquetting machine, these waste bamboo materials can be compressed into high-density biomass fuel, achieving resource utilization of bamboo waste.
2. Increasing fuel density and reducing transportation costs
Bamboo powder and shavings themselves have low bulk density, requiring significant space for storage and transportation. After high-pressure compression, the bamboo waste forms higher-density, regularly shaped fuel blocks, reducing storage space, improving transportation efficiency, and facilitating loading, unloading, and stacking.
3. More suitable for industrial boilers
Bamboo itself has good combustion performance. After briquetting, the fuel size is more uniform, facilitating transportation and automatic feeding, making it suitable as fuel for industrial boilers, biomass boilers, and some industrial kilns. For bamboo processing enterprises, the waste generated during production can be directly converted into fuel for their own use.
4. Reduce waste disposal costs and create additional value.
Compressing bamboo processing waste into biomass fuel not only reduces the costs associated with waste storage and disposal, but also allows the briquetted fuel to be used for the company’s own heating or sold as a commodity. This creates a circular utilization model of “bamboo waste → briquettes → biomass fuel → boiler utilization,” thereby increasing the comprehensive utilization value of bamboo resources.
HOW TO MAKE BRIQUETTES FROM BAMBOO WASTE?

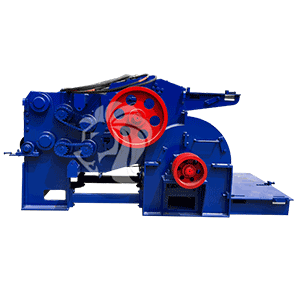

Bamboo Pulverizer
In bamboo briquetting production lines, a bamboo pulverizer can quickly chip and crush whole bamboo, bamboo stalks, bamboo branches, and bamboo waste into uniform materials suitable for briquetting, avoiding feeding difficulties and excessive equipment load caused by large pieces of bamboo directly entering the briquetting machine. At the same time, the integrated design reduces the space needed and material transfer, improving the processing efficiency and stability of the production line.

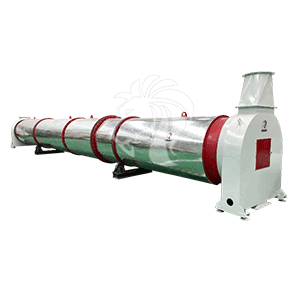

Bamboo Powder Dryer
Fresh bamboo naturally has a high moisture content, and pellet production has strict requirements for the moisture content of raw materials. To get good pellet quality, the moisture content of raw materials generally needs to be controlled between 13% and 17%. For small-scale bamboo pellet production projects, natural air drying or simple hot air drying will be the best choice considering cost savings; for large-scale pellet projects, a drum dryer will be a must to achieve rapid and uniform drying performance.

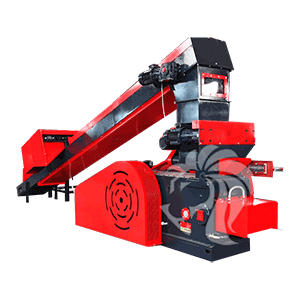

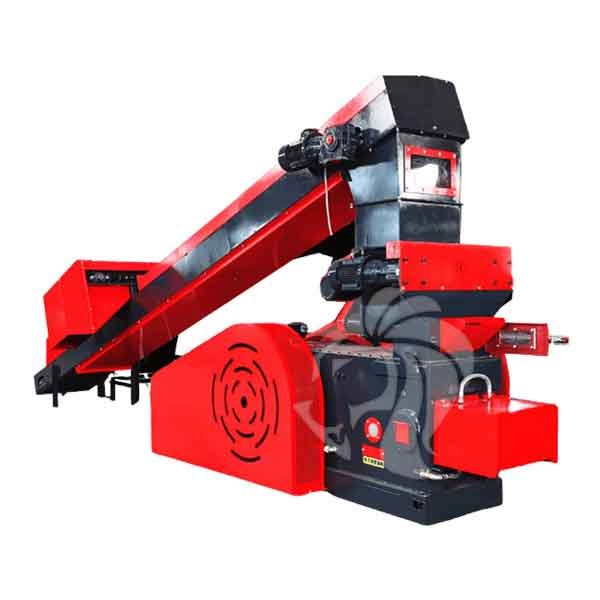

Bamboo Briquette Machine
This is the core step. The bamboo powder is fed into the piston-type briquetting machine. The temperature of the briquetting machine mold is between 80-120 degrees Celsius. This high temperature softens the raw materials, causing the lignin in the bamboo waste to soften and become a natural binder. The softened raw material is continuously extruded into the forming die parts, where its originally loose volume shrinks significantly under immense pressure. After being formed into cylindrical-shaped briquettes in the mold, the bamboo briquettes are continuously punched out from the discharge port.
BAMBOO BRIQUETTE MACHINE RUNNING VIDEO
This video showcases a bamboo briquetting production line, including a feeding bin, conveying system, and bamboo briquetting machine. It processes bamboo waste into good density bamboo biomass fuel briquettes, suitable for biomass boilers, industrial heating, and biomass fuel production.
BAMBOO BRIQUETTE MACHINE RUNNING VIDEO

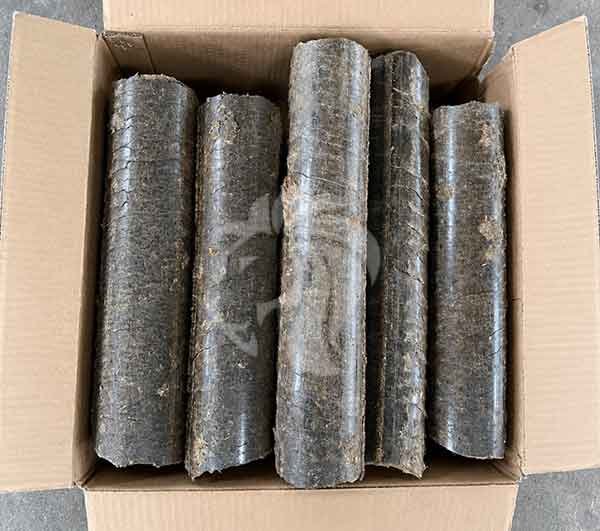

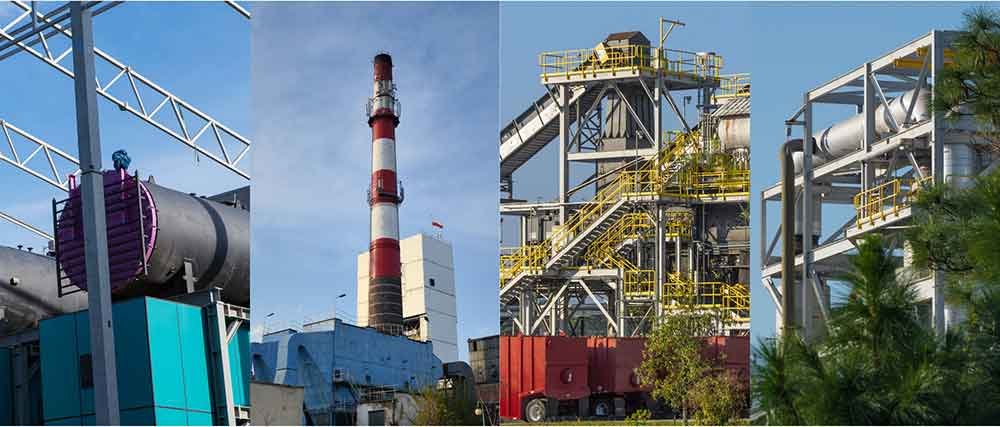

After being crushed, dried, and briquetteed, bamboo waste can be transformed into high-density biomass fuel briquettes, which are mainly used in the following scenarios:
- Biomass Boiler Fuel
Bamboo fuel briquettes offer stable combustion, are easy to store, and can be automatically fed, which is very suitable for biomass boilers to provide steam and heat for industrial production.
- Industrial Heating
Bamboo fuel briquettes can be used in industrial settings requiring continuous heat, such as food processing, wood processing, and textiles, as a substitute or supplement to traditional fuels like coal.
- Biomass Power Generation
Bamboo briquettes can be used in biomass power plants or mixed with other biomass fuels such as wood and straw.
- Commercial and Residential Heating
With appropriate biomass combustion equipment, bamboo fuel briquettes can be used for heating, hot water, and other heat energy needs.
WHAT IS THE DIFFERENCE BETWEEN BAMBOO BRIQUETTES VS BAMBOO CHARCOALS?

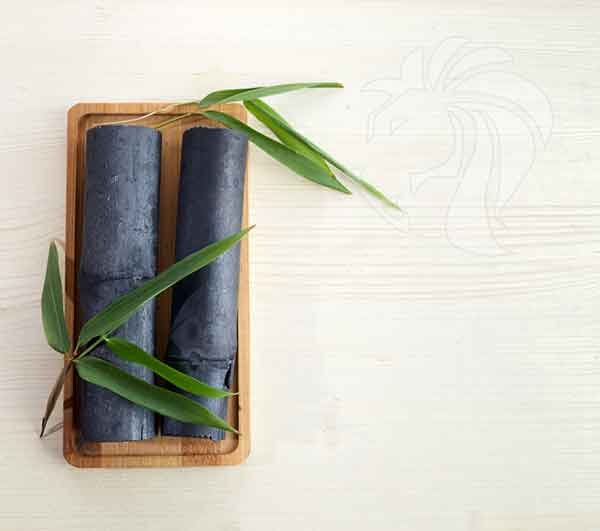

The main differences between bamboo briquettes and bamboo charcoal lie in their processing methods, finished product properties, and uses. Simply put, bamboo briquettes are made by compressing bamboo into high-density fuel, while bamboo charcoal is made by carbonizing bamboo at high temperatures to transform it into a charcoal material.
Bamboo Briquettes VS Bamboo Charcoals
| Item | Bamboo Briquettes | Bamboo Charcoals |
|---|---|---|
| Processing Method | High pressure compression | High temperature and low oxygen carbonization |
| Main Features | High density, easy to store, easy to transport | High carbon content and has certain adsorption properties |
| Production Equipment | Crusher, dryer, briquetting machine, etc. | Carbonization furnace, etc. |
| Main Application | Boiler fuel, industrial heating, biomass energy | Fuel, dehumidification, deodorization, etc. |

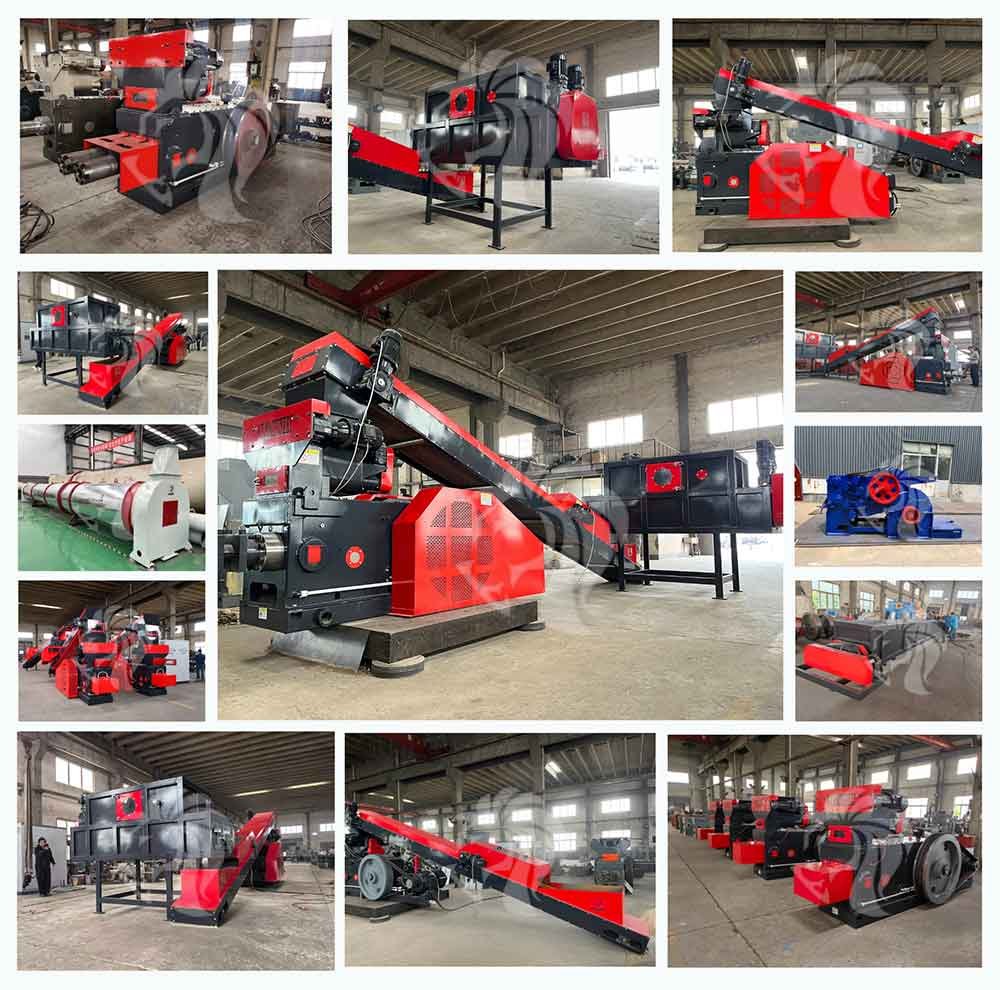

BAMBOO BRIQUETTE MACHINE MANUFACTURER KX MACHINERY
KX MACHINER is a professional manufacturer of briquetting and pelletizing production lines, and has conducted numerous research and development upgrades to the feeding, cooling, and lubrication systems of our briquetting machines. Our unique double-head mold design saves up to 50% on energy, making it the most energy-efficient molding equipment on the market. Thanks to our forced lubrication design and lubrication-cooling system, the briquetting machines can operate continuously and stably 24 hours*7days, and we have successfully delivered them to many large-scale biomass briquette production lines.
FREQUENTLY ASKED QUESTIONS
1.Can we make bamboo briquettes at home from bamboo powder?
Yes, bamboo briquettes can be made at home from bamboo powder using a small bamboo briquette machine. The bamboo powder should have a suitable particle size and moisture content to ensure stable feeding and good briquette formation.
2.What is the bamboo briquette machine price?
The price of a bamboo briquette machine depends on the machine model, production capacity, motor power, raw material condition, and configuration. A small-scale machine is more suitable for home or small business use, while larger machines and complete bamboo briquette production lines require a higher investment. For an accurate quotation, please provide your required capacity, bamboo material, moisture content, and final briquette size. We can recommend a suitable machine and provide a customized quotation based on your requirements.
3.Can I test my bamboo material before purchasing the machine?
Test run is no problem, as it can help determine suitable particle size, moisture content, machine configuration, and expected briquette quality before you invest in a complete production line.
