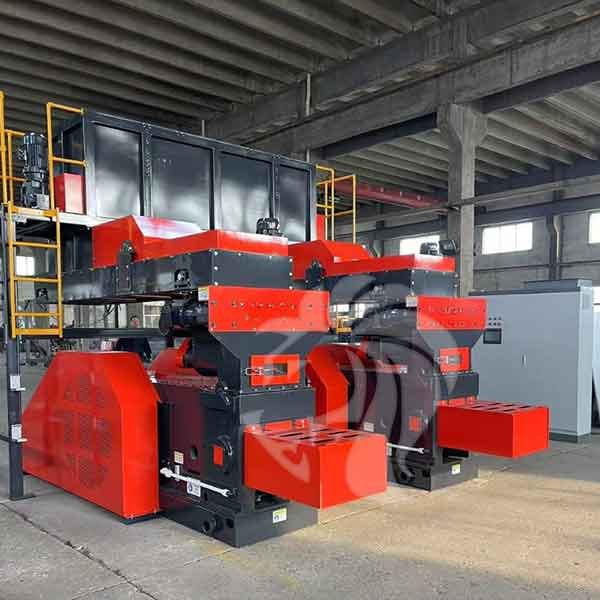

SUNFLOWER HUSK BRIQUETTE PRESS MACHINE
Sunflower-Husk-Briquette-Press-Machine
Sunflower husk briquetting machine is a fuel briquette press machine used to press dry sunflower husks. The fuel briquette logs are available in various diameters, typically including 30mm, 40mm, 60mm, and 70mm. It is particularly suitable for byproduct from sunflower seed oil production plants.
The piston-type briquetting machine has low energy consumption, stable operation, and high output, making it the best choice for transfer sunflower husks to fuel briquettes. Sunflower husks have a high calorific value and are dry enough, so they can generally be used directly. Therefore, compared to wood sawdust briquettes production, their production cost is much lower but heat value are good.
WHY SUNFLOWER HUSK ARE GOOD CHOICE TO BRIQUETTE?
- Sunflower seed shells have a high calorific value, so and the briquettes logs have a good calorific value too, this making them a high-quality fuel briquettes.
- Sunflower husks, as a byproduct of sunflower seed oil production, have lower procurement costs, which greatly increases the profit margin of the finished product compared with wood sawdust.
- The size and moisture content of sunflower husks are particularly suitable for pressing into pellets or briquettes, eliminating the needs for crushing or drying, reducing production costs, and making the fuel briquettes more competitive in the market.
HOW TO CHOOSE A HIGH-QUALITY SUNFLOWER HUSK BRIQUETTING MACHINE?
There are many types of briquetting machines on the market capable of processing sunflower shells, including screw type extruders, ring die type briquetting machines, and stamping type briquetting machines. So how do you choose a machine that offers stable performance and low operating costs? We believe that if you need industrial briquette machines with high output and stable running performance, stamping type briquetting machine is the best choice.
1. The stamping-type briquetting machine is the most energy-efficient briquette press. Designed with two large flywheels, it drives the main shaft and cams in reciprocating motion during operation. This results in high pressure and low energy consumption, significantly reducing electricity costs compared to other types of machines. Energy savings of 40%-50% can be achieved compared to other machines.
2. The stamping briquetting machine can simultaneously produce briquettes for both household and industrial boiler use. One piston-type **** briquetting machine can be equipped with different mold designs, allowing it to handle both industrial and household briquette production. This is crucial and beneficial for users’ subsequent briquette sales.
3. The stamping-type briquetting machine boasts the highest operational stability currently available on the market. Equipped with a water cooling system and a PLC automatic control system, it can achieve continuous and stable operation 24 hours a day. If an automatic feeding system is installed in the production line, only one maintenance stop per week is required, resulting in a much lower failure rate compared to other types of machines.
What precautions should be taken when using sunflower husks to make briquettes?
Sunflower husks are not a very common raw material, sufficient quantities are only available in some major sunflower seed-producing areas. Therefore, experience gained in actual production is crucial for beginners. Here are some experiences we’ve gained that hope will be helpful for you:

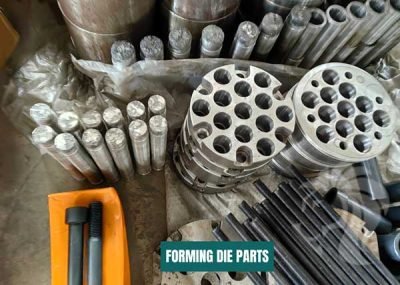

- Compared to common wood sawdust, sunflower husks have a lower lignin content, resulting in weaker binding properties. Therefore, the forming die design for the briquette machine differs from that of a sawdust briquetting machine. However, it still could meet no adhesive when briquetting; high density can be achieved by modifying the forming die.
- The maximum recommended diameter for sunflower husks briquettes is 70 mm. Larger forming dies will cause excessive machine pressure and lower output.
- If you have a lower capacity request when using sunflower seed husks as raw material, we recommend you using a flat die type sunflower husks pellet mill, and do not recommend using a screw extrusion briquetting machine because it is unstable and requires a high level of operator experience.
TECHNICAL PARAMETERS
| TYPES | MOTOR | CAPACITY | MACHINE WEIGHT |
| KX-LM1000 | 45KW | 600-1000KG/H | 6000KGS |
| KX-LM2000A | 55KW | 1000-1500KG/H | 9000KGS |
| KX-LM2000B | 75KW | 1300-2000KG/H | 10000KGS |
The above is a customized sunflower husk briquetting machine test run video before delivery. If you have any questions, please feel free to contact us.
FREQUENTLY ASKED QUESTIONS
1. When using sunflower shells as raw material, should I choose an extrusion briquetting machine or a piston type briquetting machine?
If your workers are very experienced, either type is fine. If your workers have no production experience, it is recommended not to use an extrusion type briquetting machine, as the machine’s stability will be a significant challenge for the workers.
2. Is pretreatment of sunflower husk necessary when making briquettes?
Generally, no pretreatment is needed. The raw material size and moisture content are suitable for direct using by briquette press.
3. Is an adhesive or binder needed when using sunflower husk as biomass briquetting plant raw material?
Our testing shows that no adhesive is needed. However, the compression ratio and length of the die need to be customized. The compression ratios commonly used for sawdust are not suitable for sunflower shells.
4. What briquette diameters are available?
If you want to produce small pellets, a sunflower shell pellet mill is the best choice, with options from 6-10 mm. If you want larger diameters, 30 mm, 40 mm, 60 mm, and 70 mm are available.
5. What are the uses of sunflower seed shell ash after burning?
It can be sold to flower farmers as high-quality fertilizer.
6. I need a machine to convert sunflower seed shells into raw materials with a small output. Do you have any good solutions?
If the capacity you need is very small, we suggest you produce sunflower husk pellets, as there are many models of pellet mills to choose from. However, you must confirm that only heavy-duty pellet mills can produce high-density, high-quality sunflower shell pellets.
